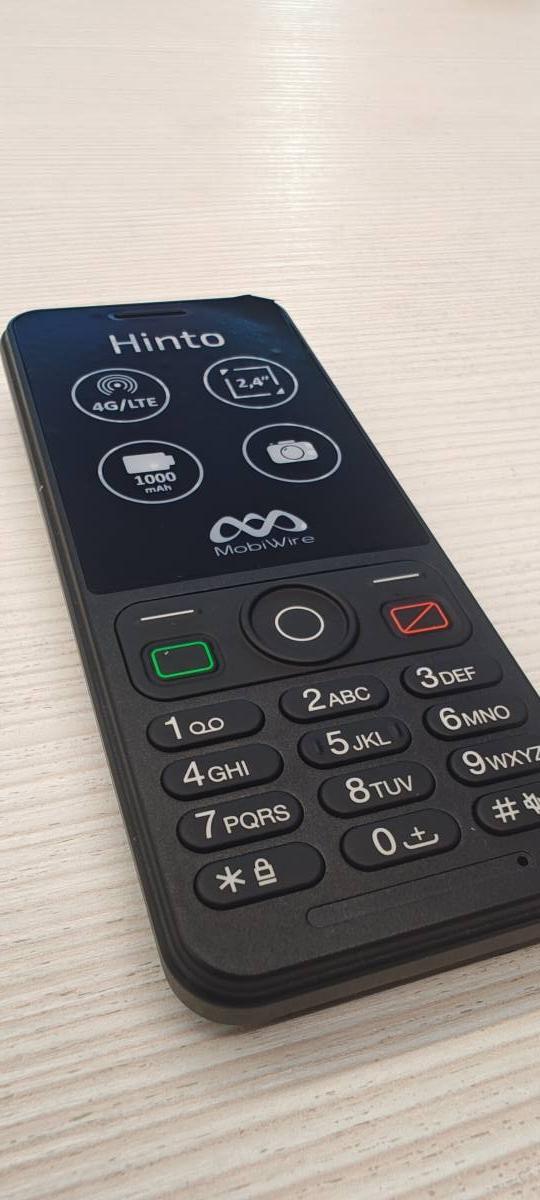

Hinto 4G

GX2421L – Hinto lite

OS
▪ Mocor
Display
▪ Screen: 2.4” QVGA
Processor
▪ UNISOC T107 Single-Core @1.0GHz
▪ IMS (VoLTE) capable (no WiFi)
Memory
▪ 128MB ROM + 48MB RAM integrated in
CPU
▪ End user memory: ~20MB (TBC on real
product)
▪ Micro SD Card slot: Yes – Up to 128GB
Camera

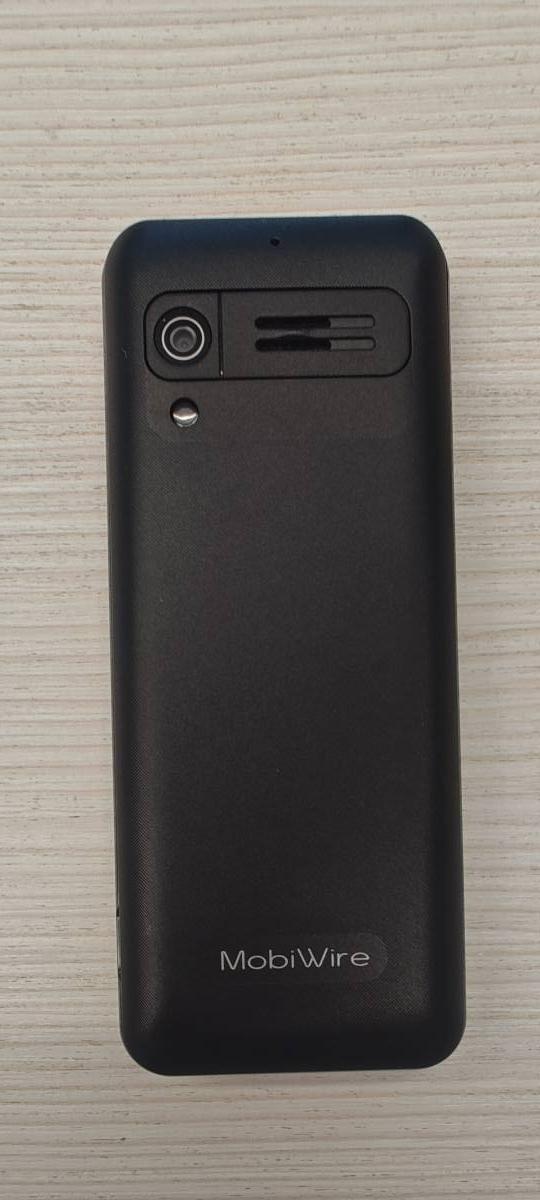

▪ Back camera: 0.3MPx FF
▪ One light flash LED
Battery
▪ 800mAh Li-Ion 3.7V

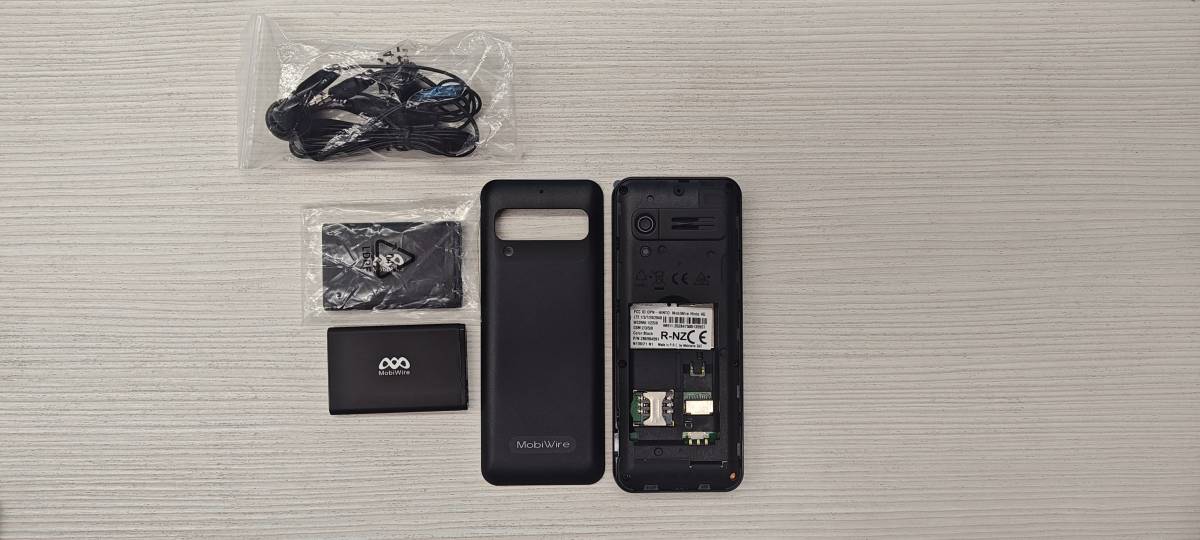

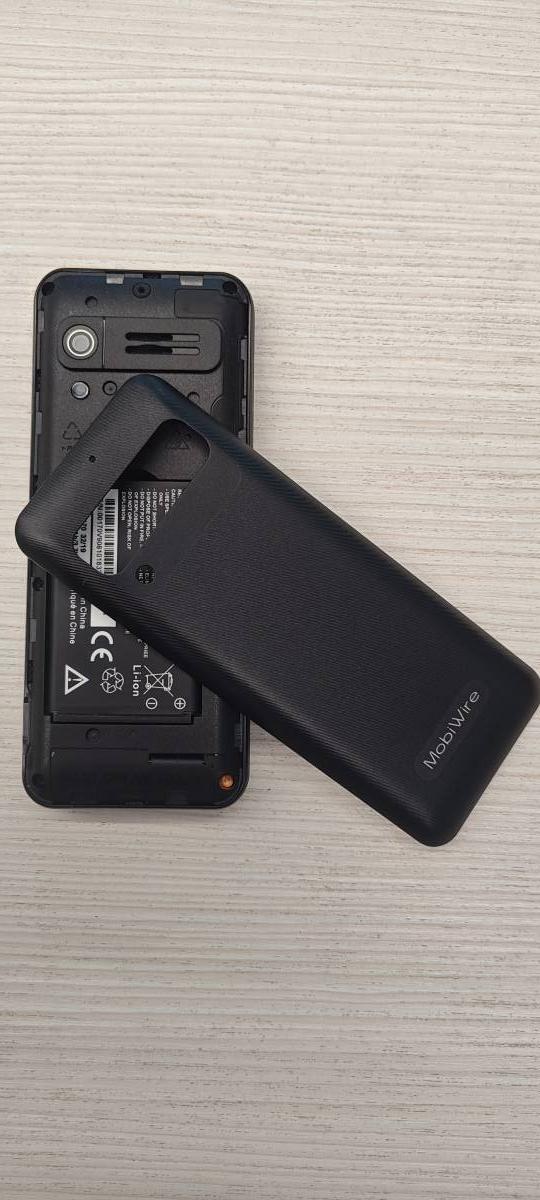

▪ Battery removable
Modem radio
▪ GSM Bands (MHz):
850 (B5), 900 (B8), 1800 (B3), 1900 (B2)
▪ UMTS Bands (MHz):
850 (B5), 900 (B8), 1900 (B2), 2100(B1)
▪ HSxPA (DL/UL):
Full Cat.24 (42.2 Mbps) / Full Cat.7 (11.5 Mbps)
▪ LTE (Cat.1 - 5Mbps /10Mbps) Bands:
700 (B28AB), 800 (B20), 1800 (B3), 2100 (B1),
2700 (B7)
Connectors

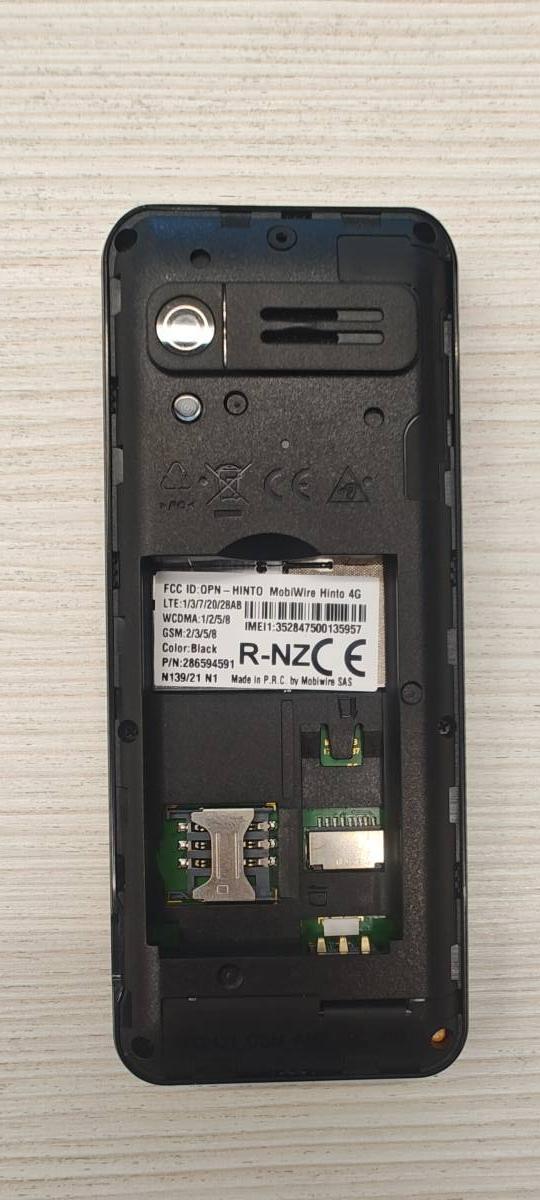

▪ 3 slots:
✓ 1 slot Micro (3FF)
✓ 1 slot Micro (3FF)
✓ 1 slot micro-SD card
▪ USB 2.0 HS B-Type
▪ 3.5mm Audio micro-Jack (CTIA standard)
Wireless connectivity
▪ Bluetooth® 5.1 LE
▪ FM Radio (antenna with headset)
Mechanical
▪ Dimension (L*W*H):
122.55x50.8x14.45mm
▪ Weight: 92g
▪ Hard keys: 4 arrows, OK key, Line ON,
Line OFF, LSK, RSK, "0>9/*/#“
Supported
▪ HD Voice (dual mic)
